Product Summary

The 1-480702-0 is a Universal MATE-N-LOK Connector.

Parametrics

1-480702-0 absolute maximum ratings: (1)High Current = No; (2)Current Rating (A) = 19; (3)Voltage (VAC) = 600.

Features

1-480702-0 features: (1)Connector; (2)Universal MATE-N-LOK Product Line; (3)Housing; (4)Connector Style = Plug; (5)Contact Type = Pin or Socket.

Diagrams

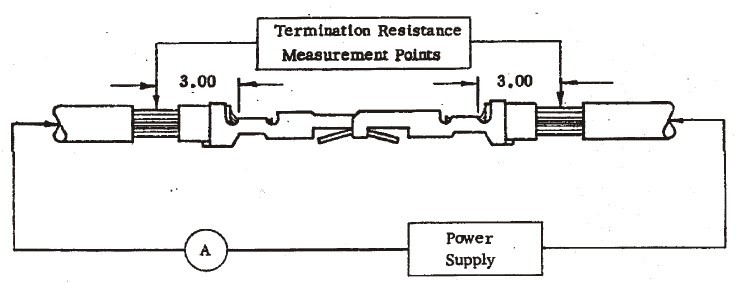

1-480702-0 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1-480702-0
1-480702-0
TE Connectivity / AMP
Pin & Socket Connectors PLUG HOUSE 4 POS
Data Sheet
0-1: $0.13
1-50: $0.11
50-100: $0.10
100-250: $0.10
