Product Summary

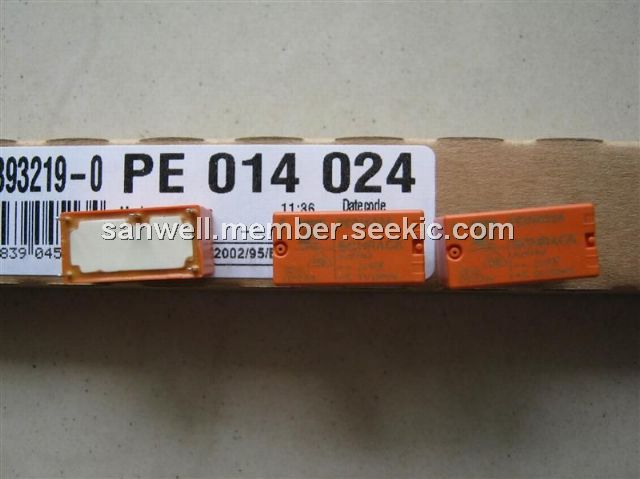

The PE014024 is a General Purpose Relay. Application areas of the PE014024 include industrial electronics, white goods, measurement and control.
Parametrics
PE014024 absolute maximum ratings: (1)Dielectric strength coil-contact circuit：4000 Vrms; (2)Dielectric strength open contact circuit：1000 Vrms; (3)Clearance/creepage coil-contact circuit：≥3,2 / 4 mm; (4)Vibration resistance (function) NO/NC contact：>15/5 g.
Features
PE014024 features: (1)1 pole 5 A, 1 CO or 1 NO contact; (2)Cadmium-free contacts; (3)Sensitive coil 200 mW; (4)4 kV coil-contact; (5)Ambient temperature 85°C; (6)Low height 10.0 mm; (7)Plastic materials according to IEC60335-1 (domestic appliances); (8)RoHS compliant (Directive 2002/95/EC) as per product date code 0352.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PE014024 |
TE Connectivity / Schrack |
General Purpose / Industrial Relays SPDT PCB 5A 24VDC |
Data Sheet |
|
|
||||||||||||
