Product Summary

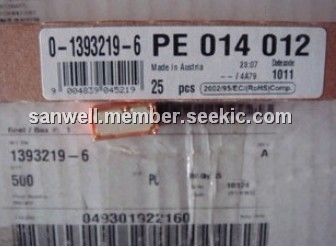

The PE014012 is a General Purpose Industrial Relay. The applications of the PE014012 include industrial electronics, white goods, measurement and control.
Parametrics
PE014012 absolute maximum ratings: (1)Contact configuration: 1 CO or 1 NO contact; (2)Contact set: single contact; (3)Type of interruption: micro disconnection; (4)Rated current: 5A; (5)Rated voltage / max.switching voltage AC: 240/400 VAC; (6)Maximum breaking capacity AC: 1250 VA; (7)Contact material: AgNi90/10; (8)Rated voltage : 12V; (9)Operate voltage : 9.0V; (10)Release voltage: 1.2V; (11)Coil resistance: 685±10% Ohm; (12)Rated coil power: 210mW.
Features
PE014012 features: (1)1 pole 5A, 1 CO or 1 NO contact; (2)Cadmium-free contacts; (3)Sensitive coil 200mW; (4)4kV coil-contact; (5)Ambient temperature 85℃; (6) Low height 10.0mm; (7) Plastic materials according to IEC60335-1 (domestic appliances); (8) RoHS compliant (Directive 2002/95/EC) as per product date code 0352.

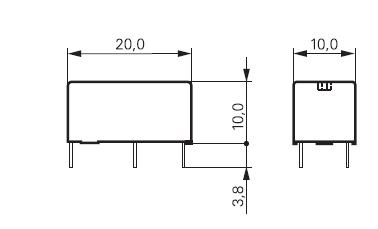

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PE014012 |
TE Connectivity / Schrack |
General Purpose / Industrial Relays SPDT PCB 5A 12VDC |
Data Sheet |
|
|
||||||||||||
