Product Summary

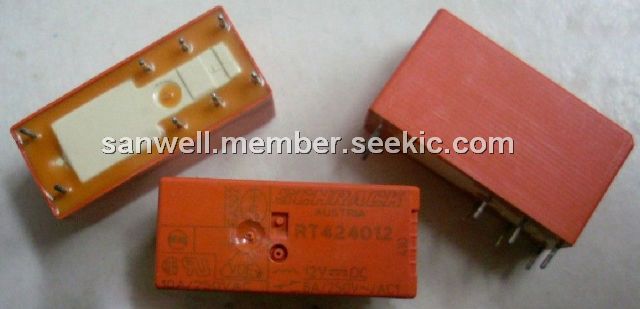

The RT424012 is a Miniature Printed Circuit Board Relay.

Parametrics

RT424012 absolute maximum ratings: (1)Voltage: 5 to 48VDC; (2)Nominal Power @ 25°C: 400mW; (3)Duty Cycle: Continuous; (4)Initial Insulation Resistance: 10,000 megohms, min., at 25°C, 500VDC and 50% rel. humidity; (5)Storage: -40°C to +105°C; (6)Operating: -40°C to +85°C at rated current.

Features

RT424012 features: (1)SPST through DPDT contact arrangements; (2)Immersion cleanable and flux tight versions available; (3)VDE 10mm spacing, 5kV dielectric, coil to contacts; (4)UL Class F coil insulation system; (5)Conforms to UL 508, 1873, 353 and 1950; (6)Low profile; 15.7mm height; (7)Sensitive coil; 400mW; (8)Withstand surge voltage of 10,000V.

Diagrams

RT424012 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RT424012
RT424012
TE Connectivity / Schrack
General Purpose / Industrial Relays DPDT 8A 12VDC PCB
Data Sheet
0-1: $1.55
1-25: $1.36
25-50: $1.23
50-100: $0.96
