Product Summary

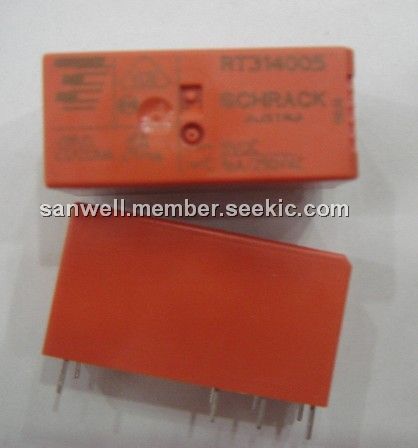

The RT314005 is a Power PCB Relay. Application areas of the RT314005 include Boiler control, timers, garage door control, POS automation, interface modules.
Parametrics
RT314005 absolute maximum ratings: (1)Rated coil voltage range: DC coil: 5 to 110 VDC, AC coil: 24 to 230 VAC; (2)Coil power: DC coil: typ 400 mW, AC coil: typ 0.75 VA; (3)Operative range: 2; (4)Coil insulation system according UL1446: class F.
Features
RT314005 features: (1)1 pole 12 / 16 A, 1 CO or 1 NO contact; (2)DC- or AC-coilI Sensitive coil 400 mW; (3)5 kV / 10 mm coil-contact, reinforced insulation; (4)Ambient temperature 85°C (DC-coil); (5)WG version: Product in accordance to IEC60335-1; (6)RoHS compliant (Directive 2002/95/EC)as per product date code 0413.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RT314005 |
TE Connectivity / Schrack |
General Purpose / Industrial Relays 16 AMP 5VDC SPDT PCB RELAY |
Data Sheet |
|
|
||||||||||||
 |
RT314005F |
TE Connectivity / P&B |
General Purpose / Industrial Relays SPDT 16A 5VDC 62Ohm PCB MINIATURE RELAY |
Data Sheet |
|
|
||||||||||||
