Product Summary

The RTE24005 is a kind of General Purpose PCB Relay, which is widely used in boiler control, timers, garage door control, POS automation, interface modules.

Parametrics

RTE24005 specifications: (1)Contact arrangement: 2 form C (CO) or 2 form A (NO); (2)Rated voltage: 250VAC; (3)Max. switching voltage: 400VAC; (4)Rated current: 8A, UL: 10A; (5)Limiting continuous current: 8A, UL: 10A; (6)Limiting making current, max. 4s, duty factor 10%: 15A; (7)Breaking capacity max.: 2000VA; (8)Frequency of operation, with/without load: 360/72000h-1; (9)Operate/release time max., DC coil: 8/6ms; (10)Bounce time max., DC coil, form A/form B: 4/10ms.

Features

RTE24005 features: (1)2 pole 8A, 2 form C (CO) or 2 form A (NO) contacts; (2)Sensitive coil 400mW; (3)5kV/10mm coil-contact, reinforced insulation; (4)Ambient temperature 85℃.

Diagrams

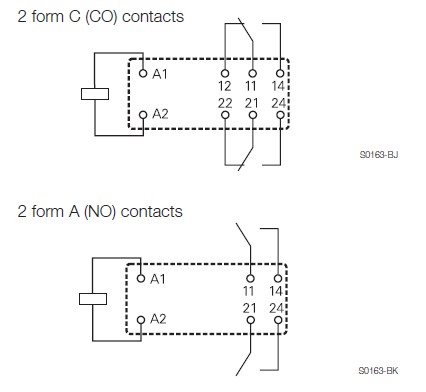

RTE24005 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RTE24005
RTE24005

TE Connectivity / Schrack

General Purpose / Industrial Relays DPDT 8Amps

Data Sheet

0-1: $1.36
1-25: $1.14
25-50: $1.10
50-100: $0.97
RTE24005F
RTE24005F

TE Connectivity / P&B

General Purpose / Industrial Relays DPDT 8A 5VDC

Data Sheet

0-1: $1.47
1-10: $1.39
10-25: $1.32
25-50: $0.99
