Product Summary

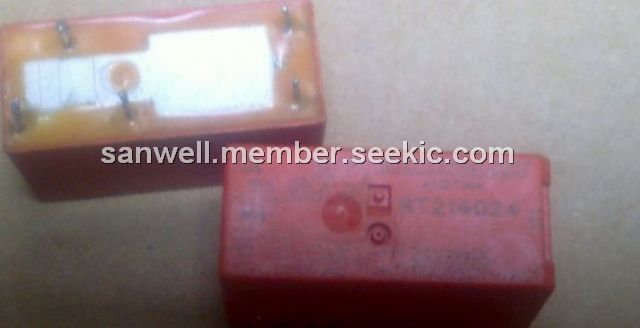

The RT214024 is a Power PCB Relay. Application areas of the RT214024 include Boiler control, timers, garage door control, POS automation, interface modules.
Parametrics
RT214024 absolute maximum ratings: (1)Rated coil voltage range: DC coil: 5 to 110 VDC, AC coil: 24 to 230 VAC; (2)Coil power: DC coil: typ 400 mW, AC coil: typ 0.75 VA; (3)Operative range: 2; (4)Coil insulation system according UL1446: class F.
Features
RT214024 features: (1)1 pole 12 / 16 A, 1 CO or 1 NO contact; (2)DC- or AC-coil; (3)Sensitive coil 400 mW; (4)5 kV / 10 mm coil-contact, reinforced insulation; (5)Ambient temperature 85°C (DC-coil); (6)WG version: Product in accordance to IEC60335-1; (7)RoHS compliant (Directive 2002/95/EC) as per product date code 0413.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RT214024 |
TE Connectivity / Schrack |
General Purpose / Industrial Relays SPDT 12A 24VDC PCB MINIATURE RELAY |
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
RT212-127-060 |
Richco Inc. |
TOROIDAL CORES GRAY |
Data Sheet |
Negotiable |
|
||||||
 |
RT214012 |
TE Connectivity / Schrack |
General Purpose / Industrial Relays 12 AMP 12VDC SPDT |
Data Sheet |
|
|
||||||
|
RT214024 |
TE Connectivity / Schrack |
General Purpose / Industrial Relays SPDT 12A 24VDC PCB MINIATURE RELAY |
Data Sheet |
Negotiable |
|
||||||
|
RT214048 |
|
RELAY GEN PURPOSE SPDT 12A 48V |
Data Sheet |
Negotiable |
|
||||||
|
RT214110 |
|
RELAY GEN PURPOSE SPDT 12A 110V |
Data Sheet |
|
|
||||||
|
RT214524 |
|
RELAY GEN PURPOSE SPDT 12A 24V |
Data Sheet |
|
|
||||||
