Product Summary

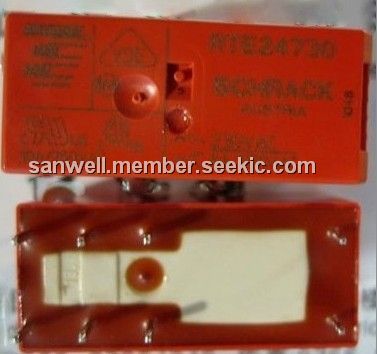

The RTE24730 is a general purpose relay.

Parametrics

RTE24730 absolute maximum ratings: (1)Rated coil voltage range DC coil: 5 to 110 VDC; AC coil: 24 to 230 VAC; (2)Coil power DC coil: typ 400 mW; AC coil typ 0,75 VA; (3)Operative range: 2; (4)Coil insulation system according UL1446: class F.

Features

RTE24730 features: (1)2 pole 8 A, 2 CO or 2 NO contacts; (2)DC- or AC-coil; (3)Sensitive coil 400 mW; (4)Reinforced insulation; (5)WG version: Product in accordance to IEC60335-1; (6)RoHS compliant (Directive 2002/95/EC) as per product date code 0413.

Diagrams

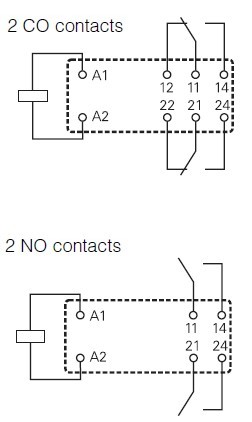

RTE24730 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RTE24730
RTE24730
TE Connectivity / Schrack
General Purpose / Industrial Relays DPDT 8A 230VAC
Data Sheet
0-389: $3.39
