Product Summary

The 350536-1 is an AMP soft shell pin socket connector.

Parametrics

350536-1 absolute maximum ratings: (1)Voltage Rating: 600 VAC; (2)Current Rating: 19 to 36 A max; (3)Operating Temperature: -30℃ to +105℃; (4)Applicable Wire: 24-16 AWG; (5)Applicable PC Board Thickness: 1.6 mm.

Features

350536-1 features: (1)Contact; (2)Universal MATE-N-LOK Product Line; (3)Contact Type = Socket; (4)Applies To Wire/Cable; (5)Crimp Termination Method.

Diagrams

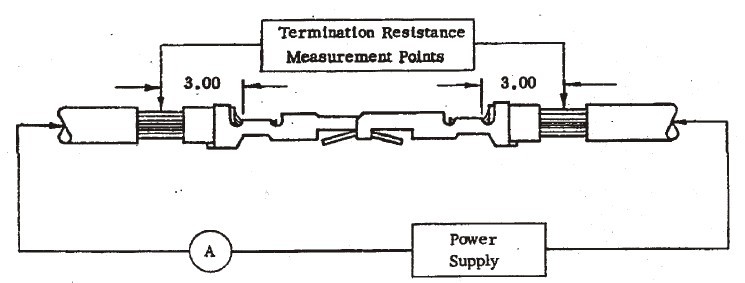

350536-1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

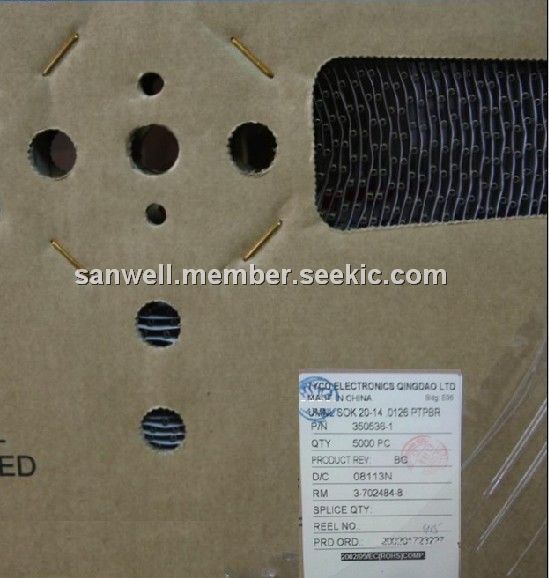

350536-1
350536-1
TE Connectivity / AMP
Power to the Board UMNL SOK 20-14 .0125 REEL
Data Sheet
0-5000: $0.01
5000-10000: $0.01
10000-50000: $0.01
