Product Summary
The RX424024C is a lower PCB Relay. It is suitable for Domestic appliances, heating control, emergency lighting.
Parametrics
RX424024C absolute maximum ratings: (1)Coil Voltage VDC Nom: 24V; (2)Contact Current Max: 8A; (3)Contact Voltage AC Nom: 250V; (4)Coil Current: 21.9mA; (5)Nom Operating Power: 500mW; (6)Contact Current AC Max: 8A; (7)Contact Voltage AC Max: 250V; (8)Current Rating: 8A; (9)DC Coil Power: 500mW; (10)Dielectric Voltage Coil to Contact: 4000VAC; (11)Dielectric Voltage Contact to Contact: 1000VAC; (12)Must Actuate Voltage: 16.4VDC; (13)Operating Temperature Max: 70℃; (14)Operating Temperature Min: -40℃; (15)Row Pitch: 7.5mm; (16)Voltage Rating V AC: 250V.
Features
RX424024C features: (1)1 C/O or 1 N/O or 2 C/O contacts; (2)DC- or AC-coil; (3)4 kV / 8 mm coil-contact; (4)Reinforced insulation (protection class II); (5)Height 15.7 mm; (6)transparent cover optional.

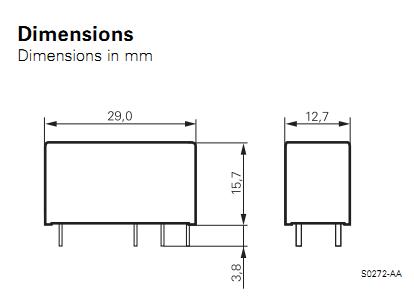

Diagrams
 |
