Product Summary

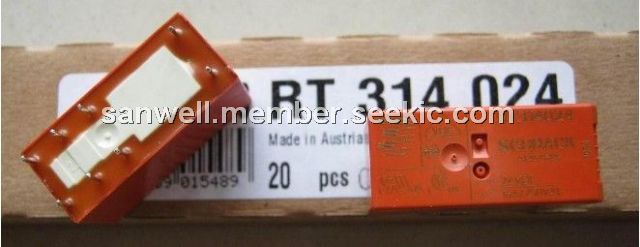

The RT314024 is a miniature printed circuit board relay, socket and accessory.

Parametrics

RT314024 absolute maximum ratings: (1)Storage temperature: -40 to +105℃; (2)Operating temperature: -40 to +85℃ at rated current.

Features

RT314024 features: (1)SPST through DPDT contact arrangements; (2)Immersion cleanable and flux tight versions available; (3)VDE 10mm spacing, 5kV dielectric, coil to contacts; (4)UL Class F coil insulation system; (5)Conforms to UL 508, 1873, 353 and 1950; (6)Low profile; 15.7mm height; (7)Sensitive coil; 400mW; (8)Withstand surge voltage of 10,000V.

Diagrams

RT314024 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RT314024
RT314024
TE Connectivity / Schrack
General Purpose / Industrial Relays SPDT 16 A 24VDC
Data Sheet
0-1: $1.06
1-10: $0.99
10-25: $0.93
25-50: $0.85
RT314024F
RT314024F
TE Connectivity / P&B
General Purpose / Industrial Relays SPDT 1 C/O 16 A 24VDC
Data Sheet
0-1: $1.27
1-10: $1.26
10-25: $1.25
25-50: $1.23
