Product Summary

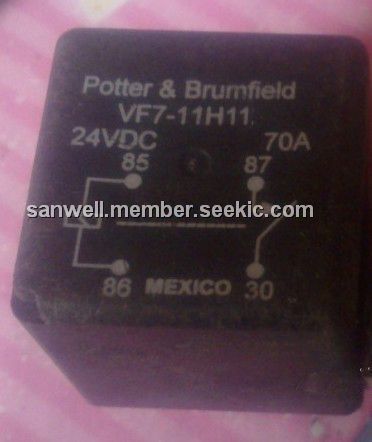

The VF7-11H11 is a Plug-in relay. Application areas of the VF7-11H11 include Battery disconnection, Power distribution, Rear window defogger.
Parametrics
VF7-11H11 absolute maximum ratings: (1)Available for nominal voltages: 12, 24 V; (2)Nominal power consumption of the unsuppressed coil at nominal voltage: 2.0 W; (3)Nominal power consumption at nominal voltage with suppression resistor: 2.2 W; (4)Test voltage winding/contact and contact/contact: 500 VACrms; (5)Ambient temperature range: – 40 to + 125 °C.
Features
VF7-11H11 features: (1)Limiting continuous current 70 A; (2)Dimensional characteristics and the functional allocation of the plug-in terminals to ISO 7588; (3)Standardized dimensions; (4)Plug-in or PCB terminals.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VF7-11H11 |
|
RELAY AUTOMOTIVE SPST 70A 24V |
Data Sheet |
Negotiable |
|
||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||
|
VF7-11F11 |
TE Connectivity |
General Purpose / Industrial Relays SPST QC 70A 12VDC Mini-ISO |
Data Sheet |
Negotiable |
|
||||||||
 |
VF7-11F11-S01 |
TE Connectivity |
General Purpose / Industrial Relays SPST QC 70A 12VDC Mini ISO w/ resistor |
Data Sheet |
Negotiable |
|
||||||||
|
VF7-11F12 |
TE Connectivity |
General Purpose / Industrial Relays SPST 12VDC PCB |
Data Sheet |
|
|
||||||||
|
VF7-11H11 |
|
RELAY AUTOMOTIVE SPST 70A 24V |
Data Sheet |
Negotiable |
|
||||||||
|
VF7-11H12 |
TE Connectivity |
General Purpose / Industrial Relays SPST PCB 70A 24VDC Mini-ISO |
Data Sheet |
Negotiable |
|
||||||||
|
VF7-41F11 |
TE Connectivity |
General Purpose / Industrial Relays SPST QC 70A 12VDC Mini-ISO w/ bracket |
Data Sheet |
Negotiable |
|
||||||||
