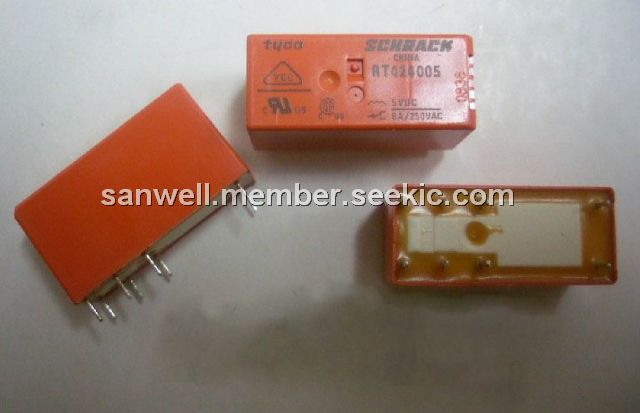

Product Summary

The RT424005 is a Power PCB Relay RT2. Application areas of the RT424005 include Domestic appliances, heating control, emergency lighting,modems.

Parametrics

RT424005 absolute maximum ratings: (1)Contact configuration: 2 CO or 2 NO; (2)Rated current: 8 A, UL: 10 A; (3)Rated voltage / max.switching voltage AC: 250/400 VAC; (4)Limiting continuous currentUL: 10 A; (5)Maximum breaking capacity AC: 2000 VA.

Features

RT424005 features: (1)2 pole 8 A, 2 CO or 2 NO contacts; (2)DC- or AC-coil; (3)Sensitive coil 400 mW ; (4)Reinforced insulation; (5)WG version: Product in accordance to IEC60335-1; (6)RoHS compliant (Directive 2002/95/EC)as per product date code 0413.

Diagrams

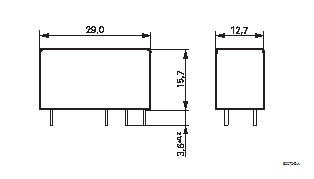

RT424005 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RT424005
RT424005
TE Connectivity / Schrack
General Purpose / Industrial Relays 5V 8A 2CO THT POWER RELAY
Data Sheet
0-1: $3.67
1-25: $3.31
25-50: $2.93
50-100: $2.80
RT424005F
RT424005F
TE Connectivity / P&B
General Purpose / Industrial Relays DPDT 8A 5VDC GEN PURPOSE RELAY
Data Sheet
0-4075: $1.20
