Product Summary

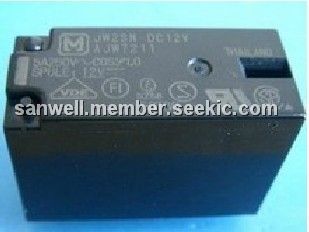

The JW2SN-DC12V is a compact pc board power relay. Application areas of the JW2SN-DC12V include VCR, Microwave ovens, Office machines Photocopiers, Vending machines, Industrial equipment NC machines, Robots, Temperature controllers.

Parametrics

JW2SN-DC12V absolute maximum ratings: (1)Initial insulation resistance: Min. 1,000 MΩ at 500 V DC; (2)Initial surge voltage between contacts and coil: Min.10,000 V; (3)Between open contacts: 1,000 Vrms for 1 min; (4)Between contacts and coil: 5,000 Vrms for 1 min.; (5)Between contact sets: 3,000 Vrms for 1 min. (2 Form A, 2 Form C).

Features

JW2SN-DC12V features: (1)Miniature package with universal terminal footprint; (2)High dielectric withstanding for transient protection: 10,000V surge inμs between coil and contact; (3)Sealed construction; (4)Class B coil insulation types available; (5)TV rated (TV-5) types available (only for 1 Form A type); (6)VDE, TUV, SEMKO, SEV, FIMKO, TV-5 also approved.

Diagrams

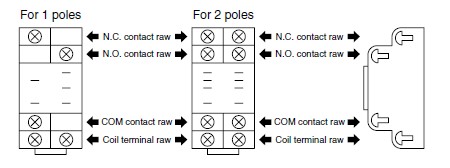

JW2SN-DC12V block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
JW2SN-DC12V
JW2SN-DC12V
Panasonic Electric Works
General Purpose / Industrial Relays 5A 12VDC DPDT SEALED PCB
Data Sheet
0-1: $2.10
1-25: $1.98
25-50: $1.79
50-100: $1.55
JW2SN-DC12V-5
JW2SN-DC12V-5
Panasonic Electric Works
General Purpose / Industrial Relays JW relay Indium Contacts
Data Sheet
0-1: $2.83
1-25: $2.59
25-50: $2.32
50-100: $1.97
