Product Summary

The 1-770874-1 is a Mini-Universal MATE-N-LOK Connector. The applications of the 1-770874-1 include Household appliances, Indoor and outdoor lighting, Medical equipment, Security systems, Industrial controls, HVAC system controls, Storage and networking systems.

Parametrics

1-770874-1 absolute maximum ratings: (1)Voltage (VAC) = 600; (2)Current Rating (A) = 9.5.

Features

1-770874-1 features: (1)Discrete wire interconnect available in 1-24 position wire-to-wire and wire-to-board pin and receptacle connector system; (2)Contacts are on 4.14 mm centerline spacing; (3)Contacts are available in strip form or loose piece; (4)Pins and sockets can be accommodated in the same housing; (5)Vertical and right angle pin headers; (6)Splash-proof design for applications that require sealing; (7)UL, CSA & VDE approved.

Diagrams

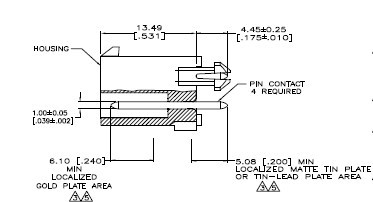

1-770874-1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
1-770874-1
1-770874-1

TE Connectivity / AMP

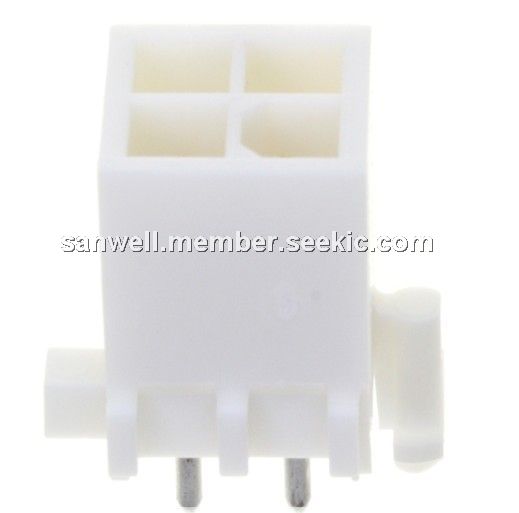

Headers & Wire Housings HEADER 4 POS GOLD DUAL ROW

Data Sheet

0-1: $1.46
1-25: $1.37
25-100: $1.25
100-500: $1.04
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
1-770005-0
1-770005-0

TE Connectivity / AMP

Power to the Board UMNLII PIN 20-14 BR/AU

Data Sheet

0-2500: $0.18
2500-10000: $0.18
10000-30000: $0.17
1-770006-0
1-770006-0

TE Connectivity / AMP

Pin & Socket Connectors SKT 20-14 PHBZ/AU PHBZ/AU

Data Sheet

0-2500: $0.27
2500-5000: $0.25
5000-10000: $0.23
1-770008-0
1-770008-0

TE Connectivity / AMP

Power to the Board SKT 20-14 PHBR/AU 12000

Data Sheet

0-4000: $0.23
4000-12000: $0.23
12000-24000: $0.22
1-770009-0
1-770009-0

TE Connectivity / AMP

Power to the Board PIN 24-18 BR/AU 20000

Data Sheet

0-5000: $0.16
5000-20000: $0.16
20000-40000: $0.15
1-770010-0
1-770010-0

TE Connectivity / AMP

Power to the Board UMNLII SKT 24-18 PHBR/AU

Data Sheet

0-5000: $0.22
5000-20000: $0.22
1-770166-0
1-770166-0

TE Connectivity / AMP

Headers & Wire Housings HEADER 2 POS TIN IN LINE

Data Sheet

0-1: $0.51
1-25: $0.48
25-100: $0.44
100-250: $0.40
