Product Summary

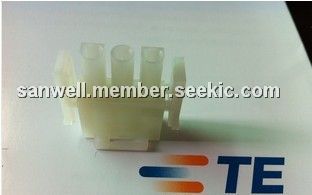

The 1-480700-0 is an AMP soft shell pin socket connector.

Parametrics

1-480700-0 absolute maximum ratings: (1)Voltage Rating: 600 VAC; (2)Current Rating: 19 to 36 A max; (3)Operating Temperature: -30℃ to +105℃; (4)Applicable Wire: 24-16 AWG; (5)Applicable PC Board Thickness: 1.6 mm.

Features

1-480700-0 features: (1)Connector; (2)Universal MATE-N-LOK Product Line; (3)Housing; (4)Connector Style = plug; (5)Contact Type = Pin or Socket.

Diagrams

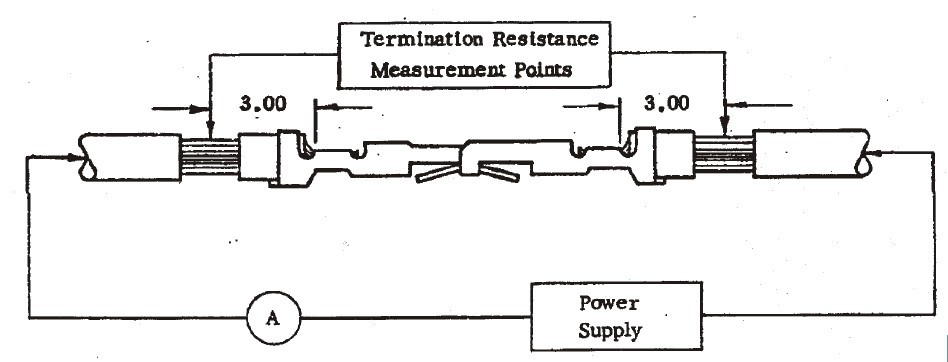

1-480700-0 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1-480700-0
1-480700-0
TE Connectivity / AMP
Pin & Socket Connectors PLUG HOUSE 3 POS
Data Sheet
0-1: $0.18
1-50: $0.13
50-100: $0.13
100-250: $0.11
