Product Summary

The T92S7D12-24 is a General Purpose High Power PCB Relay. The applications of the T92S7D12-24 include HVAC, residential / commercial appliances, industrial controls.

Parametrics

T92S7D12-24 absolute maximum ratings: (1)Contact arrangement: 2 form A (NO), 2 form C (CO); (2)Rated voltage: 277VAC; (3)Max. switching voltage: 600VAC; (4)Rated current: 30A NO; 3A NC; (5)Limiting continuous current: 40A NO; 3A NC; (6)Limiting making current: 40A NO; 3A NC; (7)Limiting breaking current: 40A NO; 3A NC; (8)Contact material: AgSnOInO, AgCdO; (9)Min. recommended contact load: 500ma (NO)/ 100ma (NC), 12VAC; (10)Frequency of operation, with load: 360hr; (11)Operate/release time max., including bounce: 25/25ms.

Features

T92S7D12-24 features: (1)40A, 2 form A (NO) and 2 form C (CO) switching capability; (2)Designed to control compressor loads to 3.5 tons, 110LRA / 25.3FLA; (3)Meets requirements of UL 508 and UL 873 spacings - 8mm through air, 9.5mm over surface; (4)Meets requirements of VDE 8mm spacing, 4kV dielectric coil to contact; (5)Meets requirements of UL Class F construction; (6)UL approved for 600VAC switching (1.5HP); (7)New screw terminal version (consult factory for availability, ratings).

Diagrams

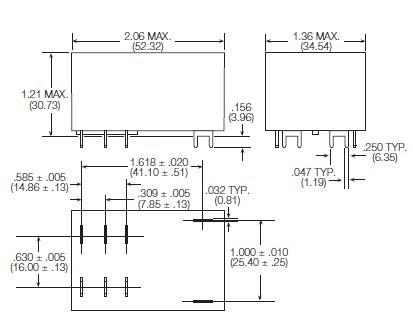

T92S7D12-24 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
T92S7D12-24
T92S7D12-24

TE Connectivity / P&B

General Purpose / Industrial Relays DPST-NO PC MT 24VDC

Data Sheet

0-1: $6.43
1-10: $6.16
10-25: $5.90
25-50: $5.44
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
T92S11A12-120
T92S11A12-120

TE Connectivity / P&B

General Purpose / Industrial Relays DPDT 30A 110/120VAC PWR PCB/PNL MNT RLY

Data Sheet

0-77: $7.39
77-100: $6.14
100-200: $5.90
200-500: $5.76
T92S11A12-24
T92S11A12-24

TE Connectivity / P&B

General Purpose / Industrial Relays DPDT 30A 24VAC PCB RELAY

Data Sheet

0-336: $5.90
336-500: $5.76
T92S11A22-12
T92S11A22-12

TE Connectivity / P&B

General Purpose / Industrial Relays DPDT 20A 12VAC PWR PCB/PNL MNT RLY

Data Sheet

0-336: $5.90
336-500: $5.76
T92S11A22-120
T92S11A22-120

TE Connectivity / P&B

General Purpose / Industrial Relays DPDT PNL MT 120VAC

Data Sheet

0-1: $8.73
1-10: $8.14
10-25: $7.63
25-50: $6.91
T92S11A22-208
T92S11A22-208

TE Connectivity / P&B

General Purpose / Industrial Relays DPDT 30A 208VAC SEAL PWR PCB/PNL MNT RLY

Data Sheet

0-1: $11.06
1-25: $9.68
25-50: $8.75
50-100: $7.51
T92S11A22-24
T92S11A22-24

TE Connectivity / P&B

General Purpose / Industrial Relays DPDT PNL MT 24VAC

Data Sheet

0-1: $8.73
1-10: $8.14
10-25: $7.63
25-50: $6.79
