Product Summary

The RT424730 is a general purpose relay.

Parametrics

RT424730 absolute maximum ratings: (1)Rated coil voltage range: 5 to 110VDC; (2)Coil power: typ 400 mW; (3)Operative range: 2; (4)Limiting voltage, % of rated coil voltage: 120%; (5)Minimum energization duration: 30 ms; (6)Maximum energization duration: 1 min at < 10% DF; (7)Coil insulation system according UL1446: class F.

Features

RT424730 features: (1)1 pole 12 / 16 A, 2 pole 8 A, 1 CO contact or 2 CO contacts; (2)DC- or AC coil; (3)Sensitive coil 400 mW; (4)Reinforced insulation, protection class II (VDE 0700); (5)5 kV / 10 mm coil-contact; (6)1pole 12 A with 3.5 or 5 mm pinning; (7)Recycleable packaging; (8)RoHS compliant (Directive 2002/95/EC) as per product date code 0413.

Diagrams

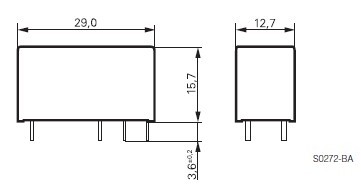

RT424730 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RT424730
RT424730
TE Connectivity / Schrack
General Purpose / Industrial Relays DPDT 8A 230VAC
Data Sheet
0-1: $5.26
1-25: $4.60
25-50: $4.16
50-100: $3.28
