Product Summary

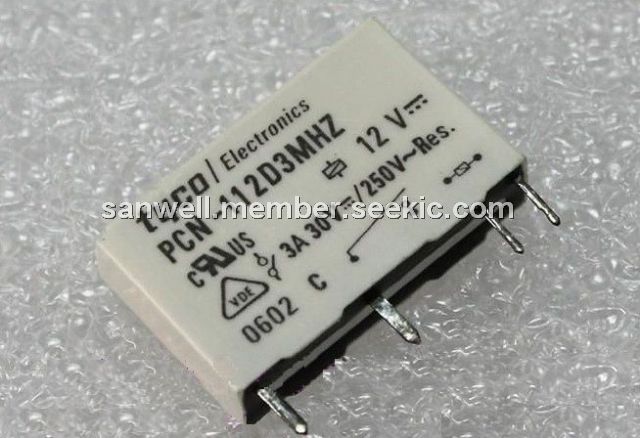

The PCN-112D3MHZ,000 is a slim PCB relay PCN.
Parametrics
PCN-112D3MHZ,000 absolute maximum ratings: (1)Ambient temperature range: -30 to +70 ℃; (2)Operate- / release time: typ. 5/2 ms; (3)Bounce time NO / NC contact < 1ms; (4)Vibration resistance (function) NO / NC contact: 10 g; (5)Shock resistance (function) NO / NC contact: 10 g; (6)Shock resistance (destruction): 100 g; (7)Category of protection: RTIII wash tight; (8)Mounting: pcb; (9)Mounting position: any; (10)Minimum mounting distance: 0 mm; (11)Resistance to soldering heat wash tight version: 260℃ / 5 s.
Features
PCN-112D3MHZ,000 features: (1)1 pole 3 A, 1 NO contact; (2)Only 5 mm wide; (3)3 A switching current; (4)Load range 1 mA up to 3 A; (5)Sensitive coil 120 mW; (6)Allows high function-/packing density; (7)Cadmium-free contacts; (8)Z type with reinforced insulation; (9)RoHS compliant (Directive 2002/95/EC) as per product date code 0424.

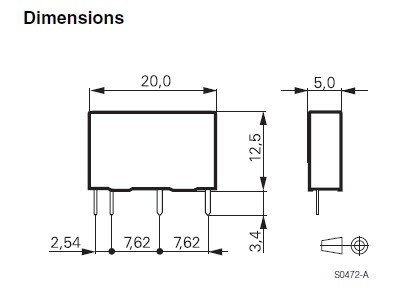

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PCN-112D3MHZ,000 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPST-NO 3A 12VDC SLIMLINE PCB RELAY |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
PCN-105D3MHZ |
TE Connectivity / OEG |
General Purpose / Industrial Relays 5VDC SPST-NO 3A |
Data Sheet |
|
|
||||||||||||
|
PCN-105D3MHZ,000 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPST-NO 3A 6VDC SLIMLINE PCB RELAY |
Data Sheet |
Negotiable |
|
||||||||||||
|
PCN-112D3MHZ |
TE Connectivity / OEG |
General Purpose / Industrial Relays 12VDC SPST-NO 3A |
Data Sheet |
|
|
||||||||||||
|
PCN-112D3MHZ,000 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPST-NO 3A 12VDC SLIMLINE PCB RELAY |
Data Sheet |
Negotiable |
|
||||||||||||
|
PCN-21-P-CK(A) |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
PCN-124D3MHZ,000 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPST-NO 24VDC 3Amps |
Data Sheet |
Negotiable |
|
||||||||||||
