Product Summary

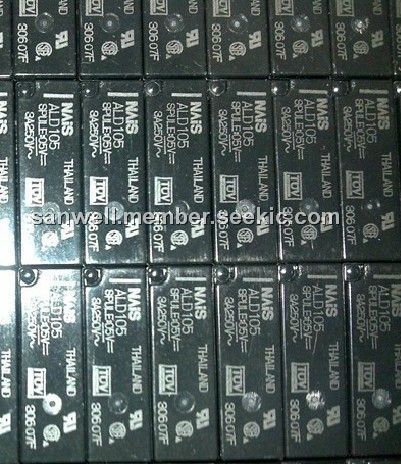

The ALD105 is a slim power relay. Application areas of the ALD105 include air conditioner, refrigerator, hot water units, microwave ovens, fan heaters.
Parametrics
ALD105 absolute maximum ratings: (1)Nominal voltage: 4.5V; (2)Pick-up voltage: 3.38 max; (3)Drop-out voltage: 0.22min; (4)Coil resistance : 101Ω; (5)Coil resistance: 44.6mA.
Features
ALD105 features: (1)Slim type: Width 7 mm; (2)Perfect for small load switching of home appliances; (3)Low operating power; (4)High shock resistance; (5)High insulation resistance.

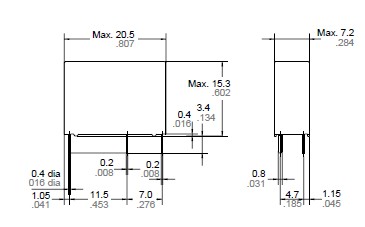

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ALD105 |
Panasonic Electric Works |
General Purpose / Industrial Relays 1 Form A 3A 277VAC 3A 30VDC 5V |
Data Sheet |
|
|
||||||||||||
 |
ALD105W |
Panasonic Electric Works |
General Purpose / Industrial Relays 1 Form A 3A 277VAC 3A 30VDC 5V |
Data Sheet |
|
|
||||||||||||
