Product Summary

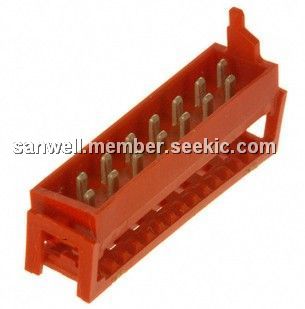

The 215083-6 is a Micro-MaTch Board-Board & Ribbon-Board Connector.

Parametrics

215083-6 absolute maximum ratings: (1)Contact resistance: 10MΩ max; (2)Insulation resistance: 1,000MΩ min; (3)Norminal voltage: 230V; (4)Current ratings: 1.5A max; (5)Temperature range: -40 to +105℃.

Features

215083-6 features: (1)Connector; (2)Type of Connector = Male-On-Wire; (3)6 Positions; (4)Applies To Cable; (5)Wire/Cable Type = Ribbon Cable.

Diagrams

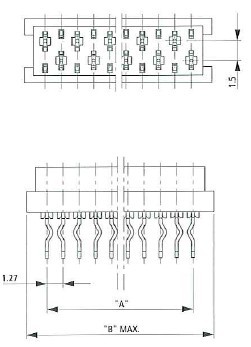

215083-6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
215083-6
215083-6
TE Connectivity / AMP
Headers & Wire Housings MOW 06P 28 AWG
Data Sheet
0-1: $0.39
1-25: $0.33
25-50: $0.29
50-100: $0.28
