Product Summary

The EC2-12NJ is a miniature signal relay. It has reduced mounting space but sustained high-performance of NEC EA2 series. Furthermore, it complies with 2500 V surge-voltage requirement of Bellcore specification. Application areas of the EC2-12NJ include electronic switching systems, PBX, terminal equipment, telephone systems.

Parametrics

EC2-12NJ absolute maximum ratings: (1)Maximum Switching Power：60 W, 125 VA; (2)Maximum Switching Voltage：220 Vdc, 250 Vac; (3)Maximum Switching Current：2 A; (4)Maximum Carrying Current：2 A; (5)Minimum Contact Ratings：10 mVdc; (6)Initial Contact Resistance：50 mΩ.

Features

EC2-12NJ features: (1)Compact and light weight; (2)2 form c contact arrangement; (3)Low power consumption; (4)Reduced mounting space : 15 mm × 7.5 mm; (5)High-breakdown voltage of coil to contacts : 1500 Vac, 2500 V (rise time : 2 μs, fall time : 10 μs); (6)Capable of High-power switching : 700 Vac, 4.2 A, 4 times in case of accident; (7)UL recognized (E73266), CAS certified (LR46266).

Diagrams

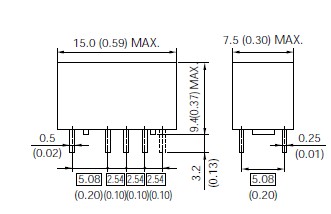

EC2-12NJ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

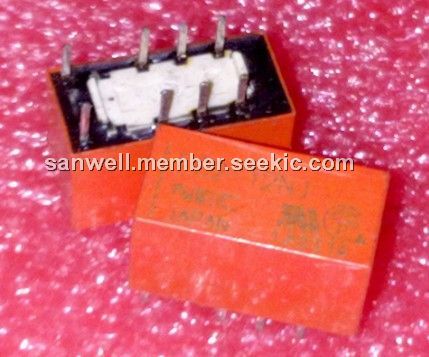

EC2-12NJ
EC2-12NJ
NEC
Low Signal Relays - PCB 12VDC NON-LATCH
Data Sheet
0-1: $1.60
1-25: $1.48
25-50: $1.36
50-100: $1.23
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EC2-12
EC2-12
Other

Data Sheet
Negotiable
EC2-12NJ
EC2-12NJ
NEC
Low Signal Relays - PCB 12VDC NON-LATCH
Data Sheet
0-1: $1.60
1-25: $1.48
25-50: $1.36
50-100: $1.23
EC2-12NU
EC2-12NU
NEC
Low Signal Relays - PCB 12VDC NON-LATCH UL
Data Sheet
0-105: $1.21
105-525: $1.15
EC2-12SNJ
EC2-12SNJ
NEC
Low Signal Relays - PCB DPDT 12V SNGL COIL
Data Sheet
0-1: $1.85
1-25: $1.71
25-50: $1.57
50-100: $1.43
