Product Summary

The 1-967642-1 is a Micro-Power & Power Quadlok System.

Parametrics

1-967642-1 absolute maximum ratings: (1)Number of Positions = 3; (2)Centerline, Matrix (mm [in]) = 2.54 x 3.10 [.100 x .122]; (3)Staggered Centerline = With; (4)Protective Cap = With; (5)Key ID = A; (6)Contact Type = Receptacle; (7)Tab Contacts = Without; (8)2.5mm Pin Diameter Contacts = Without; (9)Contact Style = MQS; (10)Number of MQS Contacts = 3.

Features

1-967642-1 features: (1)Connector; (2)Housing; (3)Connector Style = Receptacle; (4)Contact Type = Receptacle; (5)3 Positions.

Diagrams

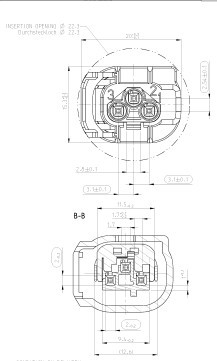

1-967642-1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
1-967642-1
1-967642-1

TE Connectivity / AMP

Power to the Board MQS BU-GEH EDS 3P

Data Sheet

0-2940: $1.03
